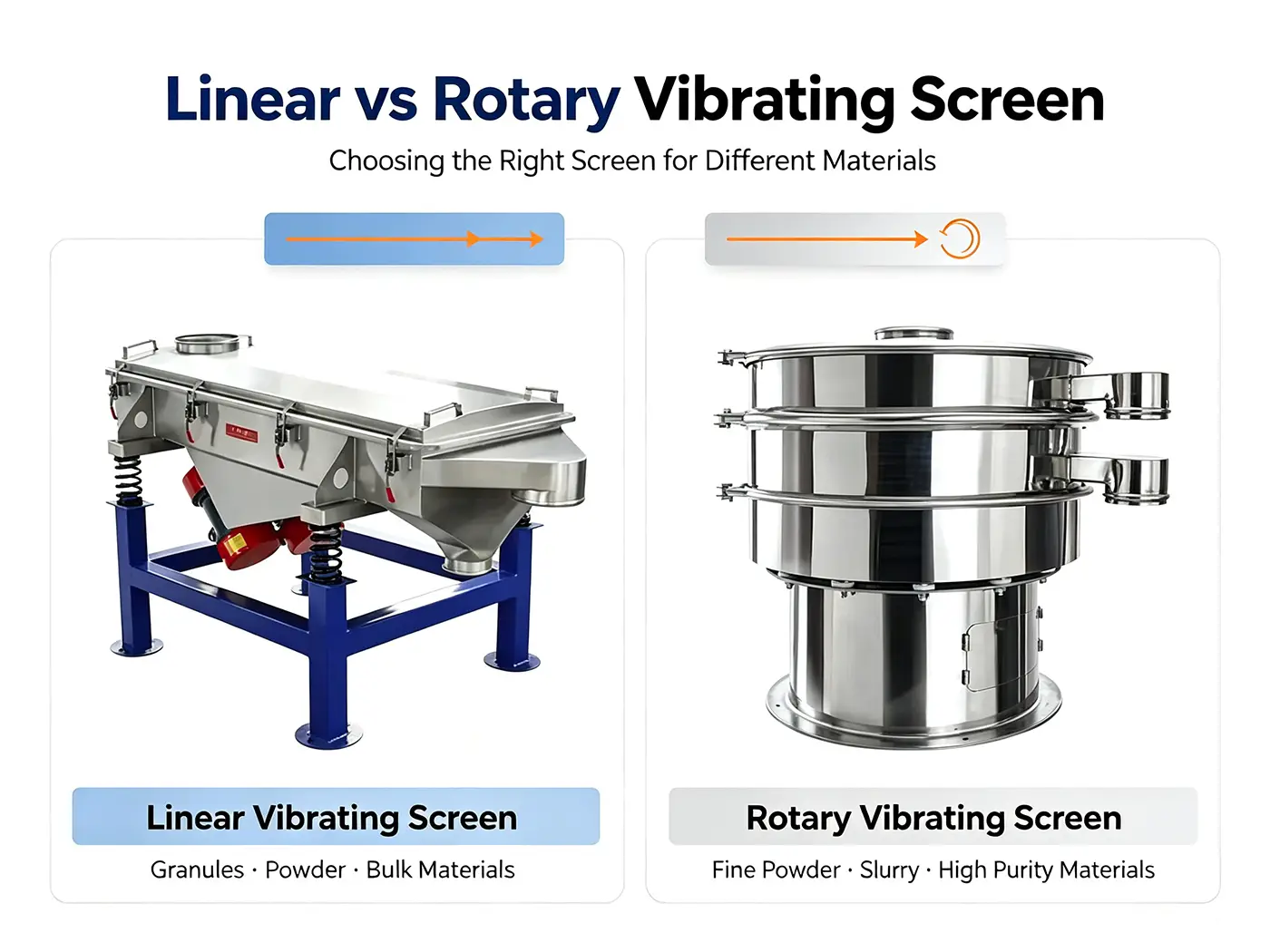

Linear vs Rotary Vibrating Screen for Different Materials: Selection Guide

Introduction

Different materials require different screening motion, screen area and mesh configurations. Fine powders generally need more controlled material movement and anti-blinding capability, while sand, minerals and granules often require larger screening area and continuous throughput.

This guide compares linear and rotary vibrating screens by material type, particle size, capacity and screening duty.

Linear vs Rotary Vibrating Screens by Material Type

Material type provides a useful starting point for vibrating screen selection, but it should not be used as the only criterion. The same material may require a different screen when the particle size, moisture, flowability, capacity or required separation accuracy changes.

As a general rule, linear vibrating screens are more commonly evaluated for continuous, higher-capacity classification of free-flowing granules and bulk solids. Rotary vibrating screens are often preferred for fine powders, safety screening and applications requiring controlled material movement. Difficult fine powders may require ultrasonic assistance, while high-capacity precision grading may call for a gyratory screen.

The table below provides a preliminary selection reference.

Material / Application	Screening Range (Mesh / mm)	Screening Duty	First Option to Evaluate	Engineering Selection Notes
Fine Powders	35–325 mesh / 0.50–0.045 mm	Fine classification / scalping	Rotary Vibrating Screen	Suitable for controlled fine screening. Below about 100 mesh (0.15 mm), flowability, near-size particles and mesh blinding become increasingly important.
Food Powders	20–200 mesh / 0.85–0.075 mm	Safety screening / grading	Rotary Vibrating Screen	Common for flour, starch, sugar and similar powders. Confirm product specification, hygiene requirements, screen material and cleaning method.
Chemical Powders	40–325 mesh / 0.425–0.045 mm	Fine classification / impurity removal	Rotary / Ultrasonic Screen	For fine or cohesive powders, check static buildup, agglomeration and mesh blinding before deciding whether ultrasonic assistance is required.
Quartz / Silica Sand	4–140 mesh / 4.75–0.106 mm	Classification / multi-size grading	Linear Vibrating Screen	Suitable for continuous classification. For abrasive sand, screen wire diameter, open area, wear life and required capacity should be evaluated together.
Frac Sand / Proppant	20–140 mesh / 0.85–0.106 mm	Precision multi-fraction grading	Gyratory / Linear Screen	Typical product grades include 20/40, 30/50, 40/70 and 70/140 mesh. Each grade requires multiple separation points rather than one screen aperture.
Garnet / Abrasive Minerals	6–140 mesh / 3.35–0.106 mm	Product sizing / classification	Linear / Gyratory Screen	Abrasive wear can change effective aperture over time. Balance wire diameter, open area, screening capacity and replacement interval.
Mineral Powders	20–200 mesh / 0.85–0.075 mm	Classification / fines removal	Linear or Rotary Screen	Linear screening suits higher-throughput, free-flowing material; rotary screening can be evaluated for finer classification and lower-capacity precision duties.
Plastic / Resin Granules	Approx. 2–18 mesh / 10–1.0 mm	Oversize / fines removal	Linear Vibrating Screen	Free-flowing pellets are generally suitable for continuous linear screening. Specify actual aperture in mm for coarse granules rather than relying on mesh count alone.
Fertilizer Granules	Approx. 3–18 mesh / 6–1.0 mm	Product sizing / oversize removal	Linear Vibrating Screen	Larger rectangular screening areas suit continuous production. Moisture and surface coating should be checked because they can increase adhesion and reduce capacity.
Lightweight Powders	35–200 mesh / 0.50–0.075 mm	Fine classification	Rotary Vibrating Screen	Low bulk density can reduce effective contact with the screen. Feed rate, material distribution and vibration parameters require closer control.
Electrostatic / Cohesive Powders	60–400 mesh / 0.25–0.038 mm	Fine / ultra-fine screening	Rotary + Ultrasonic	Ultrasonic assistance can be evaluated when static, agglomeration or persistent blinding limits conventional screening. Fine mesh alone does not automatically require ultrasonic.
Coarse Granules / Bulk Solids	Approx. 2–10 mesh / 10–2.0 mm	Scalping / classification	Linear Vibrating Screen	Directional material transport and larger screen decks suit continuous processing. For coarse products, specifying the aperture directly in mm is preferred.

Mesh conversion reference: 20 mesh ≈ 0.85 mm, 40 mesh ≈ 0.425 mm, 60 mesh ≈ 0.25 mm, 100 mesh ≈ 0.15 mm, 140 mesh ≈ 0.106 mm, 200 mesh ≈ 0.075 mm, and 325 mesh ≈ 0.045 mm.

Mesh-to-mm values are nominal references. Actual screen opening can vary with wire diameter, weave and screen standard. For equipment orders, Sanyuantang recommends confirming the required aperture in mm or μm, especially for precision classification.

Selection Guide

For coarse particles and granules above approximately 2 mm, aperture in mm is generally more useful than mesh count. For fine powders below approximately 0.5 mm, buyers commonly use both mesh and micron/mm specifications.

Sanyuantang therefore recommends providing the target particle size or product grading specification first. We then check the required aperture against feed particle-size distribution, capacity, moisture, bulk density and material behavior before selecting a linear, rotary, ultrasonic or gyratory screening configuration.

Vibrating Screen Selection

Get a Screen Recommendation

Share your material, feed size, required product sizes, capacity and operating conditions. We will help evaluate the right screen for your project.

Discuss Your Project

Response within one business day

Which Is Better for Fine Powder: Linear or Rotary Vibrating Screen?

For fine powder screening, a rotary vibrating screen is generally the first option for fine classification, safety screening and oversize removal. Its three-dimensional motion provides longer material contact with the screen surface, which is useful when working with smaller apertures and controlled product specifications.

A linear vibrating screen can still be considered for dry, free-flowing powders where higher throughput and a larger effective screening area are required. The choice should therefore be based on particle-size distribution, target aperture, capacity, bulk density, moisture and flowability, rather than particle size alone.

For powders prone to agglomeration, static buildup or mesh blinding, Sanyuantang recommends evaluating an ultrasonic screening system or carrying out a material test before the final screen configuration is confirmed.

The screen aperture should always follow the required cut size. For reference, 100 mesh is approximately 0.15 mm (150 μm), 200 mesh about 0.075 mm (75 μm), and 325 mesh about 0.045 mm (45 μm). Actual aperture should be confirmed according to the screen specification.

For aperture selection and mesh conversions, see How to Select Vibrating Screen Mesh Size?

Which Vibrating Screen Has Higher Capacity?

Linear vibrating screens generally provide higher capacity for continuous screening, while rotary vibrating screens are more focused on fine classification and controlled screening. The table below compares the main factors that affect their throughput and application range.

Capacity Factor	Linear Vibrating Screen	Rotary Vibrating Screen
Capacity Potential	Higher for continuous screening	Moderate, mainly for fine/precision screening
Duty	Continuous classification and grading	Fine screening, scalping and impurity removal
Suitable Feed	Powders, granules, sand and bulk materials	Fine powders and small granules
Screening Area	Larger rectangular deck	Compact circular deck
Material Flow	Continuous directional movement	Three-dimensional circular movement
Particle Range	Approx. 2–325 mesh / 10–0.045 mm*	Approx. 20–400 mesh / 0.85–0.038 mm*
Best Capacity Condition	Dry, free-flowing material with limited near-size particles	Free-flowing powder with moderate feed rate
Fine Mesh Capacity	Decreases as aperture becomes finer	Also decreases; anti-blinding may be required
Multi-Deck Screening	Available	Available
Best Choice When	Throughput and continuous operation are priorities	Fine screening and compact installation are priorities

*Particle ranges are application references, not equipment limits. Actual capability depends on the machine model, screen aperture, material properties and required separation efficiency.

Selection Guide: For the same machine size, throughput can change significantly when the aperture changes from a coarse opening to 100 mesh (0.15 mm), 200 mesh (0.075 mm) or finer. Capacity should therefore be specified together with the material, target cut size and particle-size distribution, rather than compared by screen type alone.

How to Choose Between a Linear and Rotary Vibrating Screen?

Choosing between a linear and rotary vibrating screen starts with the screening duty, not the machine type. Evaluate the material, particle size, required capacity, screening accuracy and operating conditions first, then match these requirements to the appropriate screen configuration.

01

Check the Material

Define powder, granule, bulk solid or slurry. Confirm bulk density, moisture, flowability, abrasion and agglomeration.

02

Define Particle Size

Provide feed range and required cut sizes in mm or μm. These points determine aperture and deck count.

03

Confirm Required Capacity

State the target in kg/h or t/h. Throughput affects screen area, loading, bed depth and machine size.

04

Set Accuracy and Fractions

Confirm scalping, classification, dedusting or multi-fraction screening. The duty is more useful than material name alone.

05

Check Material Behavior

Review moisture, stickiness, agglomeration, static, abrasion and near-size particles. Difficult feeds may need cleaning or ultrasonic assistance.

06

Review Plant Layout

Confirm floor space, inlet height, discharge direction, conveyor links, dust collection and maintenance access.

Linear or Rotary Vibrating Screen: Quick Selection Guide

The table below provides a quick reference for selecting between linear and rotary vibrating screens based on material, particle size and screening duty. Final configuration should be confirmed against the required capacity and actual operating conditions.

Screening Requirement	First Option	Main Reason
Fine powder classification	Rotary Vibrating Screen	Controlled fine screening
Safety screening	Rotary Vibrating Screen	Compact enclosed design
Difficult fine powder	Rotary + Ultrasonic	Controls mesh blinding
High-capacity screening	Linear Vibrating Screen	Large effective screen area
Granules and bulk solids	Linear Vibrating Screen	Continuous directional flow
Sand and minerals	Linear Vibrating Screen	Bulk classification duty
Several finished fractions	Evaluate Both	Depends on cuts and capacity
High-accuracy separation	Test Material First	Behavior determines performance

What Information Do We Need to Recommend a Vibrating Screen?

To recommend a suitable vibrating screen and configuration, please provide the following basic process information. This helps us match the screen size, mesh and capacity to your actual screening requirements.

Project Data

Information Required for Screen Selection

Provide the actual operating data for reliable equipment sizing.

Project Data	Example	Why It Matters
Material	Quartz sand	Defines screening and wear behavior
Feed Size	0–5 mm	Establishes incoming particle range
Required Product Size	40/70 mesh	Defines separation requirements
Capacity	10 t/h	Determines required screen area
Moisture	Less than 1%	Indicates blinding risk
Bulk Density	1.5 t/m³	Supports capacity calculation
Number of Fractions	3	Determines deck configuration
Operating Hours	16 h/day	Helps evaluate duty and wear
Special Requirements	Dust-tight / SS304	Defines equipment construction

FAQs

What is the difference between a linear and rotary vibrating screen?

A linear screen uses directional vibration on a rectangular deck. A rotary screen uses three-dimensional vibration on a circular deck. Linear screens suit continuous high-capacity classification; rotary screens suit fine powder screening and impurity removal.

Which is better, a linear or rotary vibrating screen?

Neither is universally better. Compare feed size, cut size, capacity, moisture, flowability and required fractions before selection.

Which vibrating screen is best for fine powder?

A rotary vibrating screen is usually the first option. Moisture, agglomeration, static and throughput still affect performance; ultrasonic assistance may be needed for persistent blinding.

Which vibrating screen has higher capacity?

Linear screens generally offer higher capacity potential, but aperture, screen area, bulk density, moisture and particle-size distribution determine actual throughput.

Can a linear vibrating screen screen fine powder?

Yes. Linear screens can handle many dry, free-flowing fine powders, especially where relatively high throughput is required. Cohesive or electrostatic powders may need anti-blinding measures.

Can a rotary vibrating screen handle multiple particle sizes?

Yes. A multi-deck rotary screen can separate one feed into several fractions. The practical number depends on feed distribution, deck loading and capacity.

Which vibrating screen is better for sand?

Linear vibrating screens are often the first option for quartz sand, silica sand and other granular minerals requiring continuous throughput and several size fractions.

How do I choose the right vibrating screen?

Start with material, feed size, required cut size, capacity and product fractions. Then check moisture, bulk density, flowability, abrasion and installation conditions.

For materials with difficult flow, fine particle sizes or uncertain behavior, complete a material screening test before the final equipment specification is confirmed.

Choose the Right Vibrating Screen for Your Process

The right screen depends on the material, target particle size, required capacity and screening duty. Linear vibrating screens are generally suited to continuous, higher-throughput classification, while rotary vibrating screens are more commonly used for fine screening and impurity removal.

For final selection, Sanyuantang recommends confirming the feed size, required cut size, capacity and material characteristics together. This provides a more reliable basis for selecting the screen type, mesh and equipment configuration.
